产品概述：Technical parameters: Project output DC voltage 5V12V24V48V Rated current 25A12.5A6.2A3.1A Rated power 125W150W148.8W148.8W Ripple and noise ①<75mV<150mV<150mV<···
technical parameter:

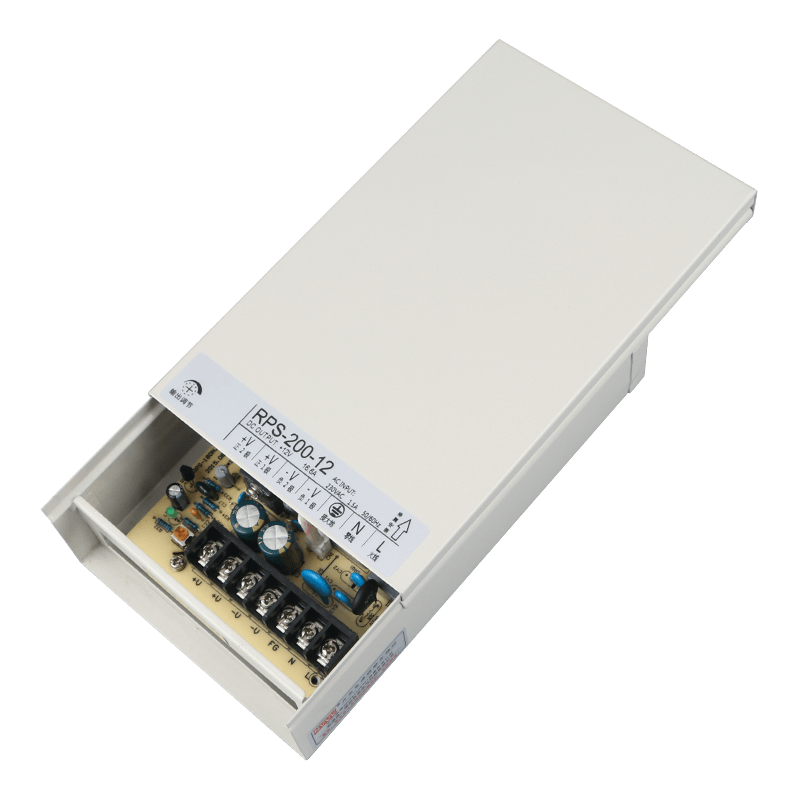

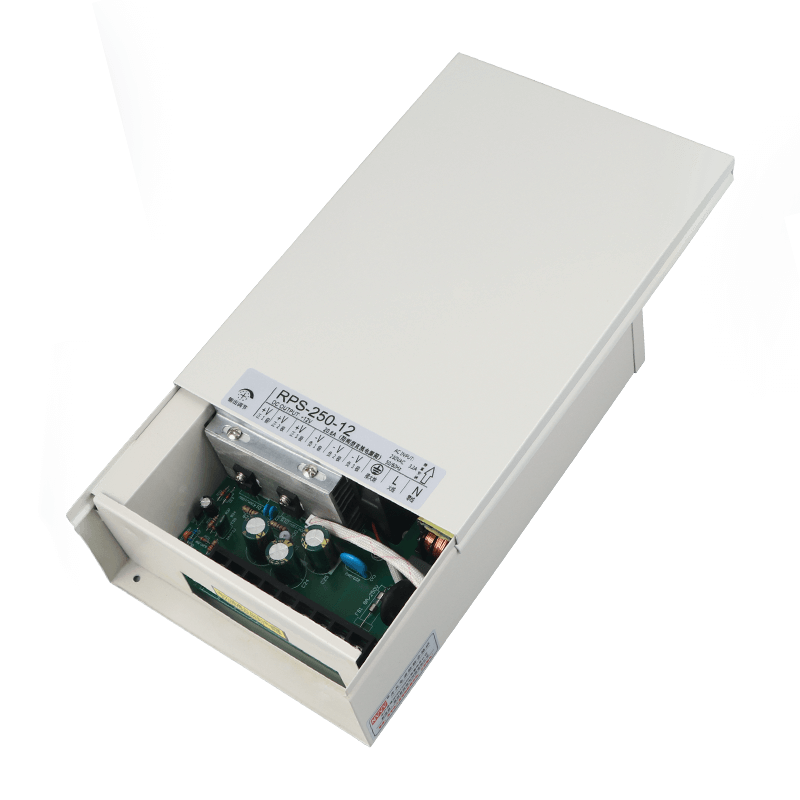

| project | |||||
| output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 25A | 12.5A | 6.2A | 3.1A | |
| rated power | 125W | 150W | 148.8W | 148.8W | |
| Ripple and Noise① | <75mV | <150mV | <150mV | <240mV | |
| Voltage accuracy | ±1% | ||||
| Output voltage regulation range | ±10% | ||||
| Load Regulation | ±1.5% | ±1.2% | ±1% | ±0.5% | |
| Linear adjustment rate | ±1% | ||||
| Start, rise, hold time | 1500ms, 200ms, 20ms: 230VAC | ||||
| enter | voltage range | 180-264VAC 47Hz～63Hz; 254VDC～370VDC | |||
| Efficiency (Typical) ② | >78% | >81% | >83% | >84% | |
| Working current | 1.75A/230VAC | ||||
| electric shock | 220VAC: 45A | ||||
| Protect | Overload protection | When the output rated power is greater than or equal to 105%-135%: protection mode: the output voltage begins to drop to the undervoltage point, and the output is cut off. Reset: power on again. | |||
| Short circuit protection | Turn off the output: Reset: Re-energize. | ||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | |||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | ||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | |||
| leakage current | Input-case ＜1.5mA at 240VAC | ||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||
| other | size | 196*118*55MM | |||
| Net weight/gross weight | 750/800g | ||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth. ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. Start-up time is measured at a cold start, fast and frequent power on and off may increase the start-up time | ||||
| project | |||||
| output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 35A | 16.6A | 8.3A | 4.1A | |
| rated power | 175W | 199.2W | 199.2W | 196.8W | |
| Ripple and Noise① | <75mV | <150mV | <150mV | <240mV | |
| Voltage accuracy | ±1% | ||||
| Output voltage regulation range | ±10% | ||||
| Load Regulation | ±1.5% | ±1.2% | ±1% | ±0.5% | |
| Linear adjustment rate | ±1% | ||||
| Start, rise, hold time | 1500ms, 200ms, 20ms: 230VAC | ||||
| enter | voltage range | 180-264VAC 47Hz～63Hz; 254VDC～370VDC | |||
| Efficiency ( Typical ) ② | >78% | >81% | >83% | >84% | |
| Working current | 2A/230VAC | ||||
| electric shock | 220VAC: 50A | ||||
| Protect | Overload protection | When the output rated power is greater than or equal to 105%-135%: protection mode: the output voltage begins to drop to the undervoltage point, and the output is cut off. Reset: power on again. | |||
| Short circuit protection | Turn off the output: Reset: Re-energize. | ||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | |||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | ||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | |||
| leakage current | Input-case ＜1.5mA at 240VAC | ||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||
| other | size | 196*118*55MM | |||
| Net weight/gross weight | 750/800g | ||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. Start-up time is measured at a cold start, fast and frequent power on and off may increase the start-up time | ||||
| project | |||||
| output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 40A | 20.8A | 10.4A | 5.2A | |
| rated power | 200W | 249.6W | 249.6W | 249.6W | |
| Ripple and Noise① | <75mV | <150mV | <150mV | <240mV | |
| Voltage accuracy | ±1% | ||||
| Output voltage regulation range | ±10% | ||||
| Load Regulation | ±1.5% | ±1.2% | ±1% | ±0.5% | |
| Linear adjustment rate | ±1% | ||||
| Start, rise, hold time | 1500ms, 200ms, 20ms: 230VAC | ||||
| enter | voltage range | 180-264VAC 47Hz～63Hz; 254VDC～370VDC | |||
| Efficiency ( Typical ) ② | >78% | >81% | >83% | >84% | |
| Working current | 3.5A/230VAC | ||||
| electric shock | 220VAC: 90A | ||||
| Protect | Overload protection | When the output rated power is greater than or equal to 105%-135%: protection mode: the output voltage begins to drop to the undervoltage point, and the output is cut off. Reset: power on again. | |||
| Short circuit protection | Turn off the output: Reset: Re-energize. | ||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | |||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | ||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | |||
| leakage current | Input-case ＜1.5mA at 240VAC | ||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||
| other | size | 232*154*68MM | |||
| Net weight/gross weight | 1166.2/1256.7g | ||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. Start-up time is measured at a cold start, fast and frequent power on and off may increase the start-up time | ||||
| project | |||||
| output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 50A | 29A | 14.6A | 7.3A | |
| rated power | 250W | 348W | 350.4W | 350.4W | |
| Ripple and Noise① | <75mV | <150mV | <150mV | <240mV | |
| Voltage accuracy | ±1% | ||||
| Output voltage regulation range | ±10% | ||||
| Load Regulation | ±1.5% | ±1.2% | ±1% | ±0.5% | |
| Linear adjustment rate | ±1% | ||||
| Start, rise, hold time | 1500ms, 200ms, 20ms: 230VAC | ||||
| enter | voltage range | 180-264VAC 47Hz～63Hz; 254VDC～370VDC | |||
| Efficiency ( Typical ) ② | >78% | >81% | >83% | >84% | |
| Working current | 4A/230VAC | ||||
| electric shock | 220VAC: 90A | ||||
| Protect | Overload protection | When the output rated power is greater than or equal to 105%-135%: protection mode: the output voltage begins to drop to the undervoltage point, and the output is cut off. Reset: power on again. | |||
| Short circuit protection | Turn off the output: Reset: Re-energize. | ||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | |||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | ||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | |||
| leakage current | Input-case ＜1.5mA at 240VAC | ||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||
| other | size | 232*154*68MM | |||
| Net weight/gross weight | 1166.2/1256.7g | ||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. Start-up time is measured at a cold start, fast and frequent power on and off may increase the start-up time | ||||

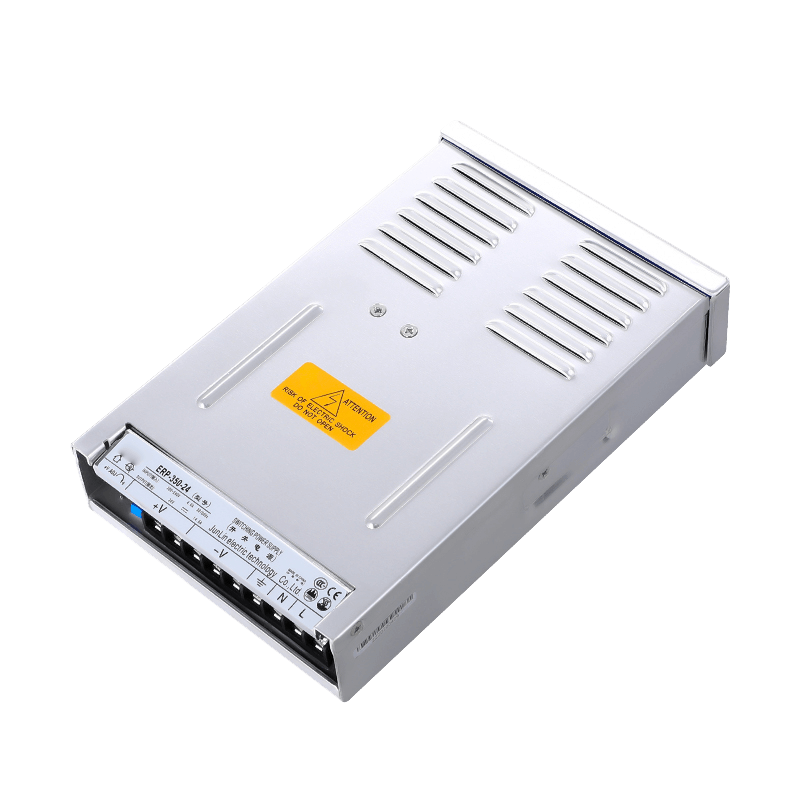

| project | |||||
| output | DC voltage | 12V | 24V | 36V | 48V |
| Rated current | 26.7A | 14.6A | 9.7A | 7.3A | |
| rated power | 320.4W | 350.4W | 349.2W | 350.4W | |
| Ripple and Noise① | <150mV | <150mV | <240mV | <240mV | |
| Voltage accuracy | ±1% | ||||
| Output voltage regulation range | ±10% | ||||
| Load Regulation | ±0.5% | ||||
| Linear adjustment rate | ±0.5% | ||||
| Start, rise, hold time | 1500ms, 200ms, 20ms: 230VAC | ||||
| enter | voltage range | 180-264VAC 47Hz～63Hz; 254VDC～370VDC | |||
| Efficiency (Typical) ② | >87% | >89% | >90% | >90% | |
| Working current | 4A/230VAC | ||||
| electric shock | 220VAC: 90A | ||||
| Protect | Overload protection | When the output rated power is greater than or equal to 105%-135%: Protection mode: hiccup mode, it can automatically recover after the abnormal condition is removed. | |||
| Overvoltage protection | When the output voltage is greater than or equal to 115%-145%: protection mode: hiccup mode, it can automatically recover after removing the abnormal condition. | ||||
| Short circuit protection | Turn off the output: protection mode: hiccup mode, it can automatically recover after the abnormal condition is removed. | ||||
| Over temperature protection | Turn off the output: it can be automatically restored after the temperature will be lowered. | ||||
| surroundings | Working temperature and humidity | -30℃～+60℃; 20%～90RH | |||
| Storage temperature and humidity | -30℃～+85℃; 10%～95RH | ||||
| Safety | Withstand voltage | Input-Output: 3KVAC Input-Case: 2KVAC Output-Case: 0.5KVAC for 1 minute | |||
| leakage current | Input-case ＜1mA at 240VAC | ||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||
| other | size | 220.4*130*48mm | |||
| Net weight/gross weight | 900/1200g | ||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth. ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear regulation and load regulation Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. Start-up time is measured at a cold start, fast and frequent power on and off may increase the start-up time | ||||
