产品概述：Technical reference: Project T-50AT-50BT-50CT-50D output output channel CH1CH2CH3CH1CH2CH3CH1CH2CH3CH1CH2CH3 DC voltage 5V12V-5V5V12V-12V5V15V-15V5V24V12V rated···

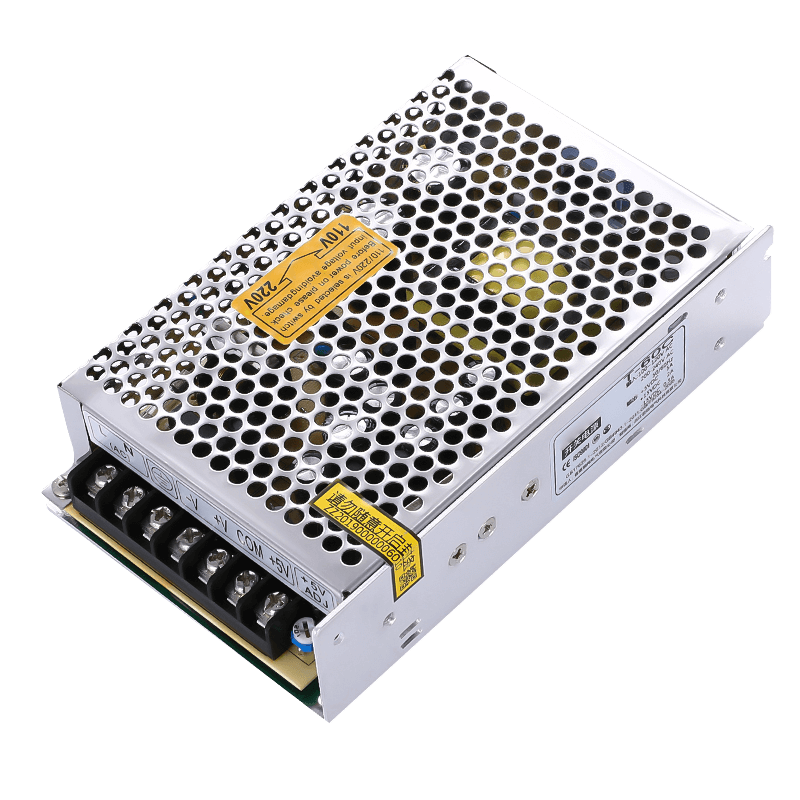

Technical reference:

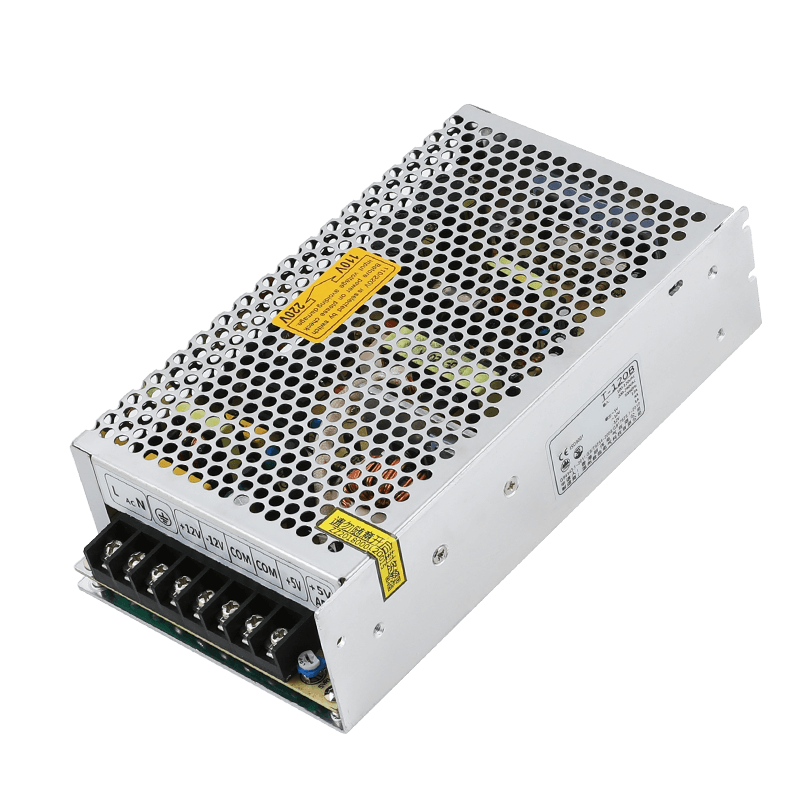

| project | T-50A | T-50B | T-50C | T-50D | |||||||||
| output | output channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 24V | 12V | |
| Rated current | 4A | 2A | 0.5A | 4A | 2A | 0.5A | 4A | 1.5A | 0.5A | 3A | 1A | 1A | |
| Current range | 0.6-5A | 0.2-2.5A | 0.1-0.7A | 0.6-5A | 0.2-2.5A | 0.1-0.7A | 0.6-5A | 0.1-2A | 0.1-0.7A | 0.6-5A | 0.1-1.5A | 0.1-1.5A | |
| rated power | 46.5W | 50W | 50W | 51W | |||||||||
| Ripple and Noise① | 80mV | 120mV | 120mV | 80mV | 120mV | 120mV | 80mV | 150mV | 150mV | 80mV | 200mV | 120mV | |
| Voltage accuracy | ±2% | ±6% | ±5% | ±2% | ±6% | ±5% | ±2% | ±8% | ±5% | ±2% | ±8% | ±6% | |
| Output voltage regulation range | CH1: ±10% | ||||||||||||
| Load Regulation | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±3.0% | |
| Linear adjustment rate | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | |
| enter | voltage range | 85-132/180-264VAC 47Hz～63Hz (254VDC～370VDC) | |||||||||||
| Efficiency (Typical) ② | >76% | >78% | >78% | >80% | |||||||||
| Working current | <1.1A 110VAC <0.65A 220VAC | ||||||||||||
| electric shock | 110VAC 18A, 220VAC 45A | ||||||||||||
| Start, rise, hold time | 900ms, 20ms, 20ms: 220VAC/800ms, 20ms, 10ms: 115VAC | ||||||||||||
| Protect | Overload protection | 105%-150% Type: constant current output +VO drops to under-voltage point, cut off output reset: re-power on | |||||||||||
| Short circuit protection | +VO drops to the undervoltage point to turn off the output | ||||||||||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | |||||||||||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | ||||||||||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5kVAC Output-Case: 0.5KVAC for 1 minute | |||||||||||
| leakage current | Input-output ＜5mA at 1.5KVAC | ||||||||||||
| leakage current | Input-output ＜2mA at 240VAC | ||||||||||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||||||||||
| other | size | 159*98*38mm | |||||||||||
| Net weight/gross weight | 440/470g | ||||||||||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at a bandwidth of 20MHz. ②The efficiency is at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C next test. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear regulation test method: from low voltage to high voltage under rated load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | ||||||||||||
| project | T-50A | T-50B | T-50C | T-50D | |||||||||
| output | output channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 24V | 12V | |
| Rated current | 4A | 2A | 0.5A | 4A | 2A | 0.5A | 4A | 1.5A | 0.5A | 3A | 1A | 1A | |
| Current range | 0.6-5A | 0.2-2.5A | 0.1-0.7A | 0.6-5A | 0.2-2.5A | 0.1-0.7A | 0.6-5A | 0.1-2A | 0.1-0.7A | 0.6-5A | 0.1-1.5A | 0.1-1.5A | |
| rated power | 46.5W | 50W | 50W | 51W | |||||||||
| Ripple and Noise① | 80mV | 120mV | 120mV | 80mV | 120mV | 120mV | 80mV | 150mV | 150mV | 80mV | 200mV | 120mV | |
| Voltage accuracy | ±2% | ±6% | ±5% | ±2% | ±6% | ±5% | ±2% | ±8% | ±5% | ±2% | ±8% | ±6% | |
| Output voltage regulation range | CH1: ±10% | ||||||||||||
| Load Regulation | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±3.0% | |
| Linear adjustment rate | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | |
| enter | voltage range | 85-132/180-264VAC 47Hz～63Hz (254VDC～370VDC) | |||||||||||
| Efficiency (Typical) ② | >76% | >78% | >78% | >80% | |||||||||
| Working current | <1.1A 110VAC <0.65A 220VAC | ||||||||||||
| electric shock | 110VAC 18A, 220VAC 45A | ||||||||||||
| Start, rise, hold time | 900ms, 20ms, 20ms: 220VAC/800ms, 20ms, 10ms: 115VAC | ||||||||||||
| Protect | Overload protection | 105%-150% Type: constant current output +VO drops to under-voltage point, cut off output reset: re-power on | |||||||||||
| Short circuit protection | +VO drops to the undervoltage point to turn off the output | ||||||||||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | |||||||||||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | ||||||||||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5kVAC Output-Case: 0.5KVAC for 1 minute | |||||||||||
| leakage current | Input-output ＜5mA at 1.5KVAC | ||||||||||||
| leakage current | Input-output ＜2mA at 240VAC | ||||||||||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||||||||||
| other | size | 159*98*38mm | |||||||||||
| Net weight/gross weight | 440/470g | ||||||||||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at a bandwidth of 20MHz. ②The efficiency is at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C next test. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear regulation test method: from low voltage to high voltage under rated load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | ||||||||||||
| project | T-120A | T-120B | T-120C | T-120D | |||||||||
| output | output channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 24V | 12V | |
| Rated current | 12A | 4.5A | 1A | 12A | 4A | 1A | 12A | 3A | 1A | 10A | 2.5A | 1A | |
| Current range | 2-15A | 0.5-5.5A | 0.1-1A | 2-15A | 0.5-5A | 0.1-1A | 2-15A | 0.5-4A | 0.1-1A | 2-12A | 0.5-3A | 0.1-1A | |
| rated power | 119W | 120W | 120W | 122W | |||||||||
| Ripple and Noise① | 80mV | 120mV | 120mV | 80mV | 120mV | 120mV | 80mV | 150mV | 150mV | 80mV | 200mV | 120mV | |
| Voltage accuracy | ±2% | ±6% | ±5% | ±2% | ±6% | ±5% | ±2% | ±8% | ±5% | ±2% | ±8% | ±6% | |
| Output voltage regulation range | CH1 : ± 10% | ||||||||||||
| Load Regulation | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±3.0% | |
| Linear adjustment rate | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | |
| enter | voltage range | 85-132/180-264VAC 47Hz～63Hz (254VDC～370VDC) | |||||||||||
| Efficiency ( Typical ) ② | >79% | >80% | >81% | >82% | |||||||||
| Working current | <3A 110VAC <2A 220VAC | ||||||||||||
| electric shock | 110VAC 18A , 220VAC 45A | ||||||||||||
| Start, rise, hold time | 900ms , 20ms , 20ms : 220VAC/800ms , 20ms , 10ms : 115VAC | ||||||||||||
| Protect | Overload protection | 105%-150% type: constant current output +VO drops to under-voltage point, cut off output reset: re-power on | |||||||||||
| Short circuit protection | +VO drops to the undervoltage point to turn off the output | ||||||||||||
| surroundings | Working temperature and humidity | -10 ℃～+50 ℃; 20% ～90RH | |||||||||||
| Storage temperature and humidity | -20 ℃～+85 ℃; 10% ～95RH | ||||||||||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5kVAC Output-Case: 0.5KVAC for 1 minute | |||||||||||
| leakage current | Input-output ＜5mA at 1.5KVAC | ||||||||||||
| leakage current | Input-output ＜2mA at 240VAC | ||||||||||||
| Isolation resistance | Input - Output, Input - Case, Output - Case : 500VDC/100M Ω | ||||||||||||
| other | size | 199*110*50mm | |||||||||||
| Net weight/gross weight | 616.3/654.3g | ||||||||||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at a bandwidth of 20MHz. ②The efficiency is at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C next test. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear regulation test method: from low voltage to high voltage under rated load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | ||||||||||||
