产品概述：①Ripple and noise measurement method: Use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measur···
technical parameter:
| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 2A | 1.25A | 0.62A | 0.42A | 0.31A | |
| rated power | 10W | 15.6W | 16.8W | 15.12W | 14.88W | |
| Ripple and Noise① | <50mV | <120mV | <150mV | <240mV | <240mV | |
| Voltage accuracy | ±2% | ±1% | ||||
| Output voltage regulation range | ±10% | |||||
| Load Regulation | <±1.5% | <±0.5% | <±0.5% | <±0.5% | <±0.5% | |
| Linear adjustment rate | <±0.5% | |||||
| enter | voltage range | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||
| Efficiency (Typical) ② | >78% | >82% | >84% | >84% | >84% | |
| Working current | <0.3A 110VAC <0.15A 220VAC | |||||
| electric shock | 110VAC 18A, 220VAC 36A | |||||
| Start, rise, hold time | 200ms, 50ms, 20ms: 220VAC | |||||
| Protect | Overload protection | ≥105%-150% Type: constant current output +VO drops to under-voltage point, cut off output reset: re-power on | ||||
| Short circuit protection | +VO drops to the undervoltage point to turn off the output | |||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | ||||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | |||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | ||||
| leakage current | Input-output ＜5mA at 1.5KVAC | |||||
| leakage current | Input-output ＜1mA at 220VAC | |||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | |||||
| other | size | 87*60*37mm | ||||
| Net weight/gross weight | 150/175g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth. ②Efficiency is tested at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||
| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 4A | 2.1A | 1A | 0.7A | 0.52A | |
| rated power | 20W | 25.2W | 24W | 25.2W | 24.96W | |
| Ripple and Noise① | <50mV | <120mV | <150mV | <240mV | <240mV | |
| Voltage accuracy | ±2% | ±1% | ||||
| Output voltage regulation range | ±10% | |||||
| Load Regulation | <±1.5% | <±0.5% | <±0.5% | <±0.5% | <±0.5% | |
| Linear adjustment rate | <±0.5% | |||||
| enter | voltage range | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||
| Efficiency (Typical) ② | >78% | >82% | >84% | >84% | >84% | |
| Working current | <0.5A 110VAC <0.25A 220VAC | |||||
| electric shock | 110VAC 18A, 220VAC 36A | |||||
| Start, rise, hold time | 200ms, 50ms, 20ms: 220VAC | |||||
| Protect | Overload protection | ≥105%-150% Type: constant current output +VO drops to under-voltage point, cut off output reset: re-power on | ||||
| Short circuit protection | +VO drops to the undervoltage point to turn off the output | |||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | ||||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | |||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | ||||
| leakage current | Input-output ＜5mA at 1.5KVAC | |||||
| leakage current | Input-output ＜1mA at 220VAC | |||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | |||||
| other | size | 87*60*37mm | ||||
| Net weight/gross weight | 150/175g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth. ②Efficiency is tested at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||

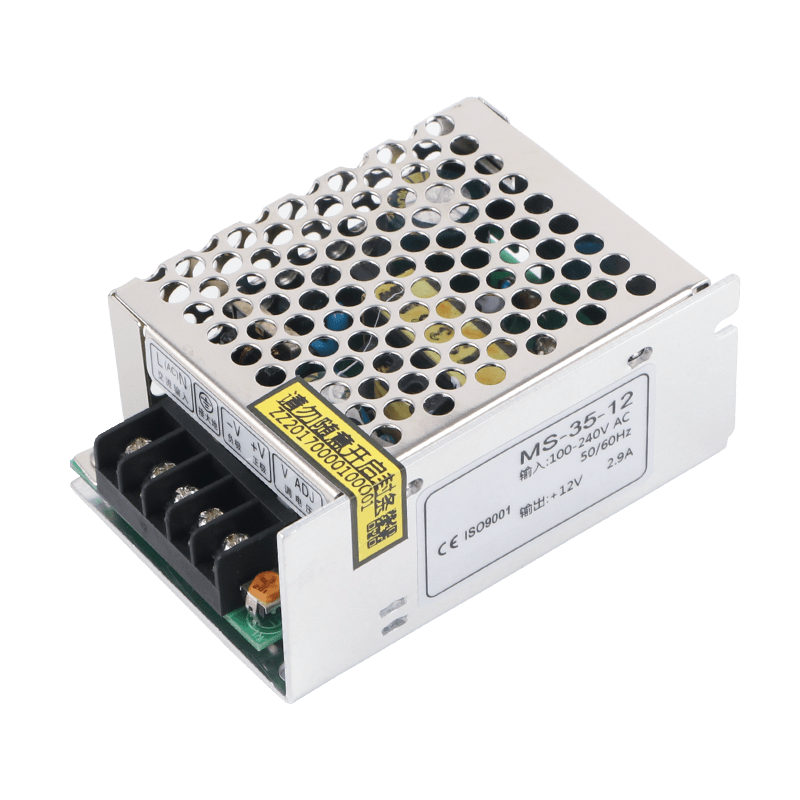

| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 6A | 2.9A | 1.5A | 1A | 0.73A | |
| rated power | 30W | 34.8W | 36W | 36W | 35W | |
| Ripple and Noise① | <50mV | <120mV | <150mV | <240mV | <240mV | |
| Voltage accuracy | ±2% | ±1% | ||||
| Output voltage regulation range | ±10% | |||||
| Load Regulation | <±1.5% | <±0.5% | <±0.5% | <±0.5% | <±0.5% | |
| Linear adjustment rate | <±0.5% | |||||
| enter | voltage range | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||
| Efficiency ( Typical ) ② | >78% | >82% | >84% | >84% | > 84% | |
| Working current | <0.8A 110VAC <0.35A 220VAC | |||||
| electric shock | 110VAC 18A , 220VAC 36A | |||||
| Start, rise, hold time | 200ms , 50ms , 20ms : 220VAC | |||||
| Protect | Overload protection | ≥105%-150% Type: constant current output + VO drops to undervoltage point, cut off output reset: re-power on | ||||
| Short circuit protection | +VO drops to the undervoltage point, turns off the output | |||||
| surroundings | Working temperature and humidity | -10 ℃～+50 ℃; 20% ～90RH | ||||
| Storage temperature and humidity | -20 ℃～+85 ℃; 10% ～95RH | |||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | ||||
| leakage current | Input-output ＜5mA at 1.5KVAC | |||||
| leakage current | Input-output ＜1mA at 220VAC | |||||
| Isolation resistance | Input - Output, Input - Case, Output - Case : 500VDC/100M Ω | |||||
| other | size | 87*60*37mm | ||||
| Net weight/gross weight | 150/175g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Test method for linear regulation rate: from low voltage to high voltage under rated load. Test method for load regulation rate: from 0% to 100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||

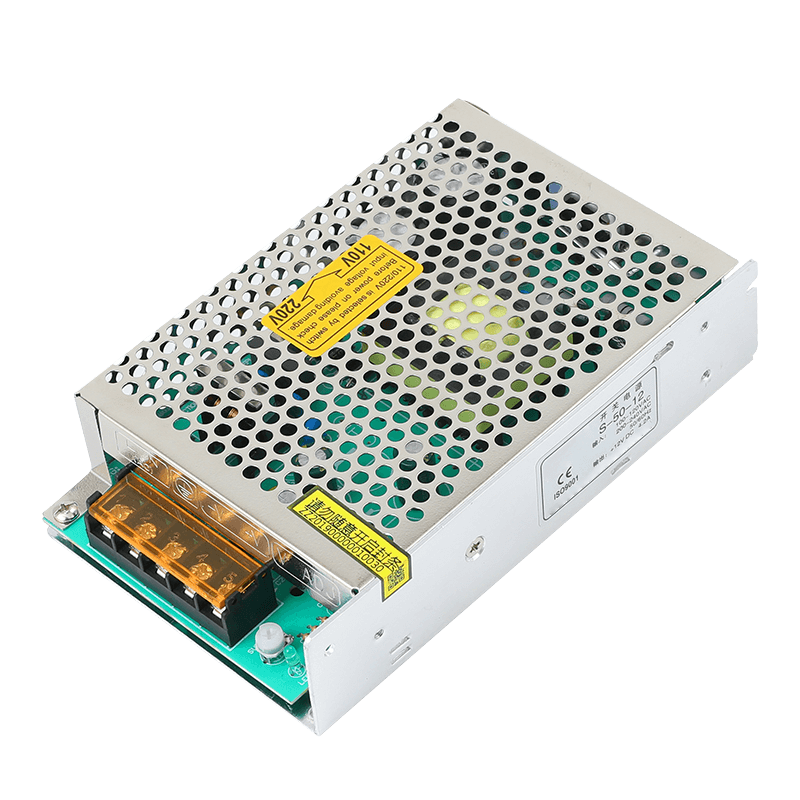

| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 8A | 4.2A | 2.1A | 1.4A | 1.1A | |
| rated power | 40W | 50.4W | 50.4W | 50.4W | 52.8W | |
| Ripple and Noise① | <50mV | <120mV | <150mV | <240mV | <240mV | |
| Voltage accuracy | ±2% | ±1% | ||||
| Output voltage regulation range | ± 10% | |||||
| Load Regulation | <±1.5% | <±0.5% | <±0.5% | <±0.5% | <± 0.5% | |
| Linear adjustment rate | <±0.5% | |||||
| enter | voltage range | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||
| Efficiency ( Typical ) ② | >78% | >82% | >84% | >84% | > 84% | |
| Working current | <0.8A 110VAC <0.35A 220VAC | |||||
| electric shock | 110VAC 18A , 220VAC 36A | |||||
| Start, rise, hold time | 200ms , 50ms , 20ms : 220VAC | |||||
| Protect | Overload protection | ≥105%-150% Type: constant current output + VO drops to undervoltage point, cut off output reset: re-power on | ||||
| Short circuit protection | +VO drops to the undervoltage point to turn off the output | |||||
| surroundings | Working temperature and humidity | -10 ℃～+50 ℃; 20% ～90RH | ||||
| Storage temperature and humidity | -20 ℃～+85 ℃; 10% ～95RH | |||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | ||||
| leakage current | Input-output ＜5mA at 1.5KVAC | |||||
| leakage current | Input-output ＜1mA at 220VAC | |||||
| Isolation resistance | Input - Output, Input - Case, Output - Case : 500VDC/100M Ω | |||||
| other | size | 111*78*36mm | ||||
| Net weight/gross weight | 300/345g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth . ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||

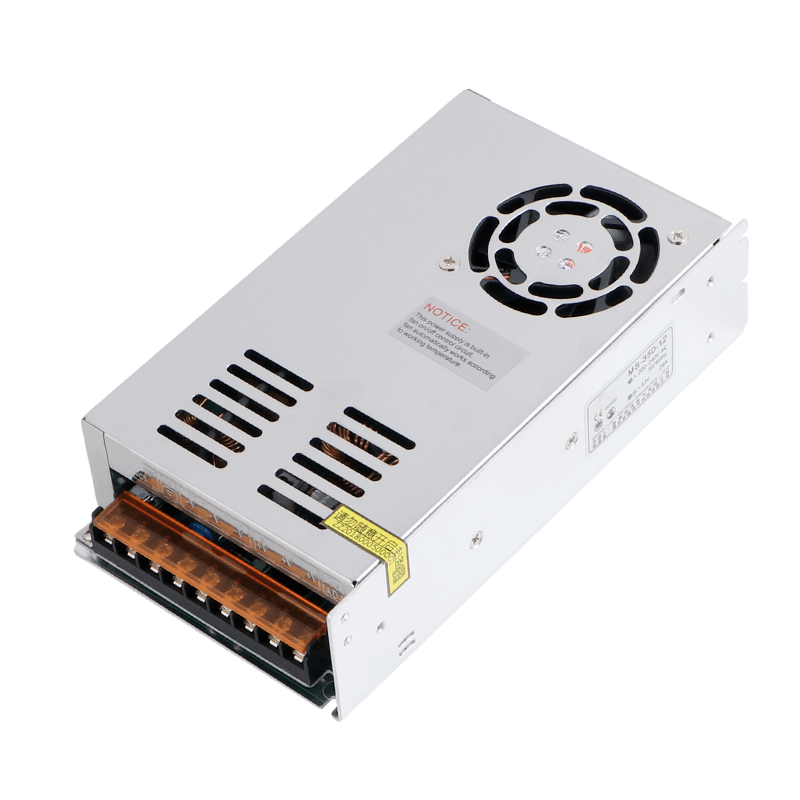

| project | Technical indicators | ||||
| output | DC voltage | 12V | 24V | 36V | 48V |
| Rated current | 29A | 14.5A | 9.7A | 7.3A | |
| rated power | 350W | 350W | 350W | 350W | |
| Ripple and Noise① | <120mV | <240mV | <240mV | <240mV | |
| Voltage accuracy | ±1.0% | ||||
| Output voltage regulation range | ±10% | ||||
| Load Regulation | ±0.5% | ||||
| Linear adjustment rate | ±0.5% | ||||
| enter | voltage range | 90-132VAC/180-264VAC 47Hz～63Hz; 254VDC～370VDC | |||
| Efficiency (Typical) ② | >83% | >85% | >86% | >86% | |
| Working current | 110VAC 25A, 220VAC: 50A | ||||
| electric shock | <5.5A 115VAC <2.9A 230VAC | ||||
| Start, rise, hold time | 200ms, 50ms, 20ms: 230VAC | ||||
| Overload protection | 105%-135% Type: constant current output +VO drops to under-voltage point, cut off output reset: re-power on | ||||
| Protect | Overvoltage protection | 115%-145% | |||
| Under voltage protection | 10%-45%VOUT | ||||
| temperature protection | RTH3: ≥55℃ fan start, ≤50℃ fan close, ≥85℃ close output (5V-15V) | ||||
| surroundings | Working temperature and humidity | -10℃～+50℃; 20%～90RH | |||
| Storage temperature and humidity | -20℃～+85℃; 10%～95RH | ||||
| Safety | Withstand voltage | Input-Output: 1.5KVAC Input-Case: 2.5kVAC Output-Case: 0.5KVAC for 1 minute | |||
| leakage current | Input-output ＜6mA at 1.5KVAC | ||||
| leakage current | Input-output ＜1.5mA at 220VAC | ||||
| Isolation resistance | Input-Output, Input-Case, Output-Case: 500VDC/100MΩ | ||||
| other | size | 199*98*38mm | |||
| Net weight/gross weight | 616.3/654.3g | ||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth. ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear regulation test method: from low voltage to high voltage under rated load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | ||||
