产品概述：①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measur···
technical parameter

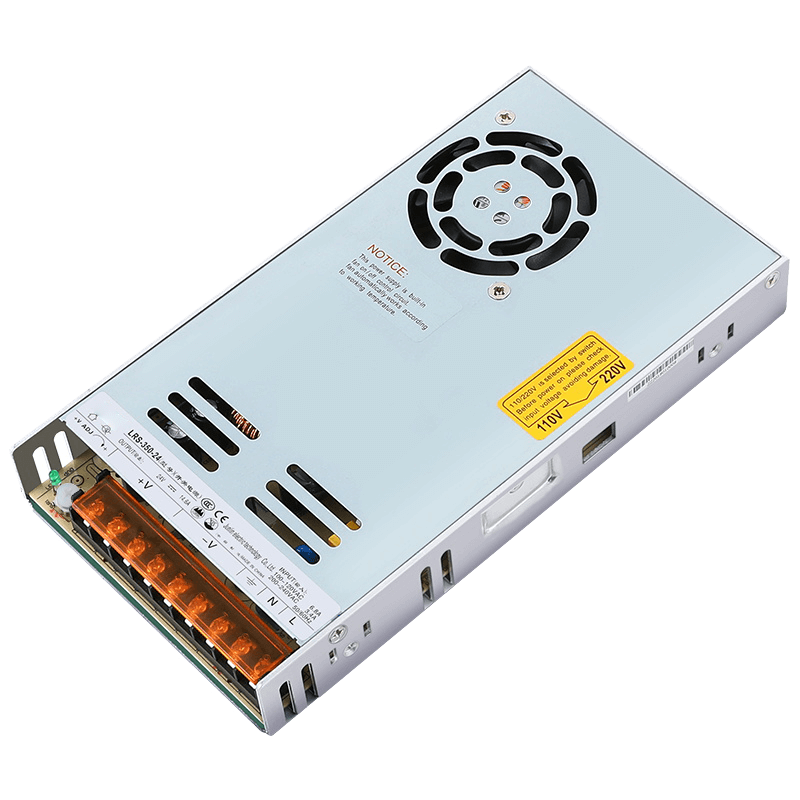

| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 7A | 3A | 1.5A | 1A | 0.8A | |
| rated power | 35W | 36W | 36W | 36W | 38.4W | |
| Ripple and Noise① | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltage adjustment range | ±10% | |||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Start-up, rise time | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC (full load) | |||||
| hold time | 30ms/230VAC 12ms/115VAC (full load) | |||||
| enter | Voltage Range/Frequency | 85-264VAC / 120-373VDC 47Hz～63Hz | ||||
| Efficiency (Typical) ② | 82% | 86% | 88% | 88% | 89% | |
| Working current | 0.7A/115VAC 0.42A/230VAC | |||||
| electric shock | Cold start: 45A/230VAC | |||||
| leakage current | <0.75mA at 240VAC | |||||
| Protect | Overload protection | ≥110%-130% Protection type: hiccup mode, when the abnormal condition is removed, it will automatically return to normal | ||||
| Overvoltage protection | ≥115%-145% Protection type: turn off the output, restart automatically and return to normal | |||||
| surroundings | Working temperature and humidity | -30℃～+70℃; 20%～90RH | ||||
| Storage temperature and humidity | -40℃～+85℃; 10%～95RH | |||||
| Safety | Pressure resistance | Input-Output: 4KVAC Input-Case: 2KVAC Output-Case: 1.25KVAC for 1 minute | ||||
| Insulation resistance | Input-output, input-case, output-case: 500VDC/100MΩ 25℃ 70%RH | |||||
| other | size | 98*82*30mm(L*W*H) | ||||
| Net weight/gross weight | 230g/246g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||
| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 10A | 4.2A | 2.2A | 1.45A | 1.1A | |
| rated power | 50W | 50.4W | 52.8W | 52.2W | 52.8W | |
| Ripple and Noise① | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltage adjustment range | ±10% | |||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Start-up, rise time | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC (full load) | |||||
| hold time | 30ms/230VAC 12ms/115VAC (full load) | |||||
| enter | Voltage Range/Frequency | 85-264VAC / 120-373VDC 47Hz～63Hz | ||||
| Efficiency (Typical) ② | 83% | 86% | 88% | 89% | 90% | |
| Working current | 0.95A/115VAC 0.56A/230VAC | |||||
| electric shock | Cold start: 45A/230VAC | |||||
| leakage current | <0.75mA at 240VAC | |||||
| Protect | Overload protection | ≥110%-130% Protection type: hiccup mode, when the abnormal condition is removed, it will automatically return to normal | ||||
| Overvoltage protection | ≥115%-145% Protection type: turn off the output, restart automatically and return to normal | |||||
| surroundings | Working temperature and humidity | -30℃～+70℃; 20%～90RH | ||||
| Storage temperature and humidity | -40℃～+85℃; 10%～95RH | |||||
| Safety | Pressure resistance | Input-Output: 4KVAC Input-Case: 2KVAC Output-Case: 1.25KVAC for 1 minute | ||||
| Insulation resistance | Input-output, input-case, output-case: 500VDC/100MΩ 25℃ 70%RH | |||||
| other | size | 98*82*30mm(L*W*H) | ||||
| Net weight/gross weight | 230g/246g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||

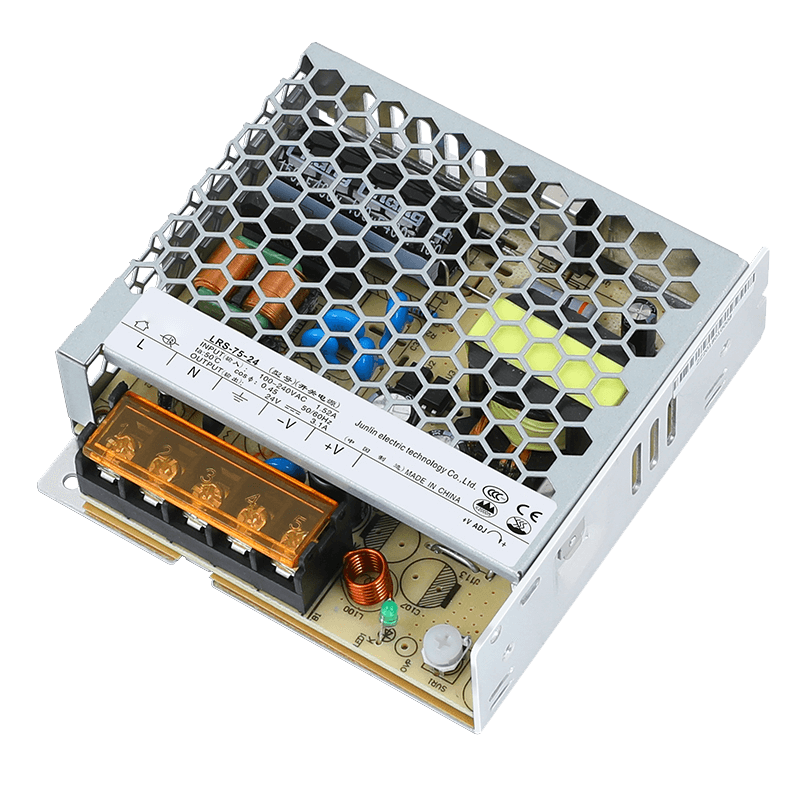

| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 14A | 6A | 3.2A | 2.1A | 1.6A | |
| rated power | 70W | 72W | 76.8W | 75.6W | 76.8W | |
| Ripple and Noise① | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltage adjustment range | ±10% | |||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Start-up, rise time | 500ms, 30ms/230VAC 500ms, 30ms/115VAC (full load) | |||||
| hold time | 60ms/230VAC 12ms/115VAC (full load) | |||||
| enter | Voltage Range/Frequency | 85-264VAC / 120-373VDC 47Hz～63Hz | ||||
| Efficiency (Typical) ② | 86.5% | 89% | 90% | 91.5% | 91.5% | |
| Working current | 1.4A/115VAC 0.85A/230VAC | |||||
| electric shock | Cold start: 65A/230VAC | |||||
| leakage current | <0.75mA at 240VAC | |||||
| Protect | Overload protection | ≥110%-130% Protection type: hiccup mode, when the abnormal condition is removed, it will automatically return to normal | ||||
| Overvoltage protection | ≥115%-145% Protection type: turn off the output, restart automatically and return to normal | |||||
| surroundings | Working temperature and humidity | -30℃～+70℃; 20%～90RH | ||||
| Storage temperature and humidity | -40℃～+85℃; 10%～95RH | |||||
| Safety | Pressure resistance | Input-Output: 4KVAC Input-Case: 2KVAC Output-Case: 1.25KVAC for 1 minute | ||||
| Insulation resistance | Input-output, input-case, output-case: 500VDC/100MΩ 25℃ 70%RH | |||||
| other | size | 99*97*30mm(L*W*H) | ||||
| Net weight/gross weight | 250g/272g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth. ②Efficiency is tested at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||
| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 18A | 8.5A | 4.5A | 2.8A | 2.3A | |
| rated power | 90W | 102W | 108W | 100.8W | 110.4W | |
| Ripple and Noise① | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltage adjustment range | ±10% | |||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Start-up, rise time | 500ms, 30ms/230VAC 500ms, 30ms/115VAC (full load) | |||||
| hold time | 55ms/230VAC 10ms/115VAC (full load) | |||||
| enter | Voltage Range/Frequency | 85-264VAC / 120-373VDC 47Hz～63Hz | ||||
| Efficiency (Typical) ② | 86% | 88% | 90% | 90.5% | 91% | |
| Working current | 1.9A/115VAC 1.2A/230VAC | |||||
| electric shock | Cold start: 50A/230VAC | |||||
| leakage current | <1mA at 240VAC | |||||
| Protect | Overload protection | ≥110%-130% Protection type: hiccup mode, when the abnormal condition is removed, it will automatically return to normal | ||||
| Overvoltage protection | ≥115%-145% Protection type: turn off the output, restart automatically and return to normal | |||||
| surroundings | Working temperature and humidity | -30℃～+70℃; 20%～90RH | ||||
| Storage temperature and humidity | -40℃～+85℃; 10%～95RH | |||||
| Safety | Pressure resistance | Input-Output: 3KVAC Input-Case: 1.5KVAC Output-Case: 0.5KVAC for 1 minute | ||||
| Insulation resistance | Input-output, input-case, output-case: 500VDC/100MΩ 25℃ 70%RH | |||||
| other | size | 129*97*30mm(L*W*H) | ||||
| Net weight/gross weight | 340g/365g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||
| project | Technical indicators | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 60A | 29A | 14.6A | 9.7A | 7.3A | |
| rated power | 300W | 348W | 350.4W | 349.2W | 350.4W | |
| Ripple and Noise① | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltage adjustment range | ±10% | |||||
| Voltage accuracy | ±3.0% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±2.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Start-up, rise time | 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC (full load) | |||||
| hold time | 16ms/230VAC 12ms/115VAC (full load) | |||||
| enter | Voltage Range/Frequency | 90-132VAC/180-264VAC select by switch / 240-370VDC 47Hz～63Hz | ||||
| Efficiency (Typical) ② | 83.5% | 85% | 88% | 88.5% | 89% | |
| Working current | 6.8A/115VAC 3.4A/230VAC | |||||
| electric shock | Cold start: 60A/115VAC 60A/230VAC | |||||
| leakage current | <2mA at 240VAC | |||||
| Protect | Overload protection | 110%-130% Protection type: hiccup mode, when the abnormal condition is removed, it will automatically return to normal | ||||
| Overvoltage protection | 115%-145% Protection type: turn off the output, restart automatically to return to normal | |||||
| Over temperature protection | ≥90℃ Protection type: hiccup mode, when the abnormal condition is removed, it will automatically return to normal | |||||
| Function | Fan on/off control | RTH3≥50℃ Fan on ≤40℃ Fan off | ||||
| surroundings | Working temperature and humidity | -25℃～+70℃; 20%～90RH | ||||
| Storage temperature and humidity | -40℃～+85℃; 10%～95RH | |||||
| Safety | Pressure resistance | Input-Output: 3KVAC Input-Case: 2KVAC Output-Case: 0.5KVAC for 1 minute | ||||
| Insulation resistance | Input-output, input-case, output-case: 500VDC/100MΩ 25℃ 70%RH | |||||
| other | size | 215*115*30mm(L*W*H) | ||||
| Net weight/gross weight | 760g/827g | |||||
| Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at 20MHz bandwidth ②The efficiency is tested under the input voltage of 230VAC, the rated load, and the ambient temperature of 25℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear Regulation Test Method: Test from Low Voltage to High Voltage at Rated Load Load regulation test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||
