Lithium iron battery UPS
The biggest advantage of iron battery UPS is to provide longer discharge time, so that your valuable equipment has better protection. This series has different dimensions to suit your space. The lithium iron battery used in this product can save your maintenance cost, including battery replacement and dedicated service.
main feature
●Real double conversion online UPS system
●Output power factor 0.9
●Battery fast charging
●Quick battery replacement design
●Easy-to-use and auto-rotate LCD design (only for RT models)
●Full load condition can have more than 8 minutes discharge time
●Battery cycle life can reach more than 2000 times
The built-in circuit protection of the battery pack has passed UL1973 (MH63914) certification
●Comply with UN38.3 battery transportation specification
Product Specifications
| MODEL | Galleon One LiFePO4 1K | Galleon One LiFePO4 1.5K | Galleon One LiFePO4 2K | Galleon One LiFePO4 3K | |
| capacity | 1000 VA / 900 W | 1500 VA / 1350 W | 2000 VA / 1800 W | 3000 VA / 2700 W | |
| phase | Single phase with ground | ||||
| ENTER | |||||
| voltage range | 55-150 VAC ± 3% or 110-300 VAC ± 3% @ 50% load; 80-150 VAC ± 3% or 160-300 VAC ± 3% @ 100% load | ||||
| Rated voltage | 100/110/115/120 /127 VAC or 200/208/220/230/240 VAC | ||||
| Frequency Range | 40~70 Hz | ||||
| power factor | ≧0.99 @ nominal voltage (100% load) | ||||
| THDi | ≦5% @nominal input voltage | ||||
| OUTPUT | |||||
| The output voltage | 100*/110/115/120 /127 VAC or 200*/208*/220/230/240 VAC | ||||
| Frequency Range (Battery Mode) | 60 Hz ± 0.1Hz or 50 Hz ± 0.1Hz | ||||
| transfer time | AC to battery mode | Zero | |||
| transfer time | ECO to battery mode | 8ms (Typical) | |||
| transfer time | Inverter to Bypass | < 4ms (Typical) | |||
| Waveform (Battery Mode) | Pure Sine Wave | ||||
| Current crest ratio | 3:1 | ||||
| Harmonic Distortion | 2% max @ 100% linear load, 5% max @ 100% non-linear load (before low battery alarm) | ||||
| Frequency range (sync range) | 57~63 Hz or 47~53 Hz | ||||
| Voltage Regulation (Battery Mode) | ± 1% | ||||
| EFFICIENCY | |||||
| battery mode | 87% | 89% | 90% | ||
| AC mode | 89% @ full charged battery | 90% @ full charged battery | |||
| ECO mode | ≧96% @ full charged battery | ||||
| BATTERY | |||||
| battery voltage | 25.6 V | 48 V | 76.8 V | ||
| recharging current | 1/2/4/6/8A (max.), adjustable through LCD | ||||
| Charging voltage | 28 VDC ± 1% | 52.5 VDC ± 1% | 84 VDC ± 1% | ||
| charging mode | 2 stage charging management(CC-CV) | ||||
| Battery Type** | LiFe 247500 | LiFe 485000 | LiFe 722500 | ||
| battery cycle life | > 2000 | ||||
| Single battery structure | LFP26650P-260 | ||||
| Number of batteries** | 1 | 2 | 3 | ||
| battery binding | 8S3P | 15S3P | (15S3P) x 2 | (24S1P) x 3 | |
| Battery VAH (factory setting) | 7.5Ah | 5Ah | 10Ah | 7.5Ah | |
| Discharge time @ full load | 9.5 minutes | 8 minutes | 12 minutes | 9.5 minutes | |
| Typical charging time | 1.5 hours recover to 90% capacity | ||||
| SURROUNDINGS | |||||
| Working humidity | 20-95 % RH @ 0- 40°C (non-condensing) | ||||
| noise level | Less than 45dB | Less than 45dB@Line mode, Less than 55dB@Battery mode | |||
| PHYSICS | |||||

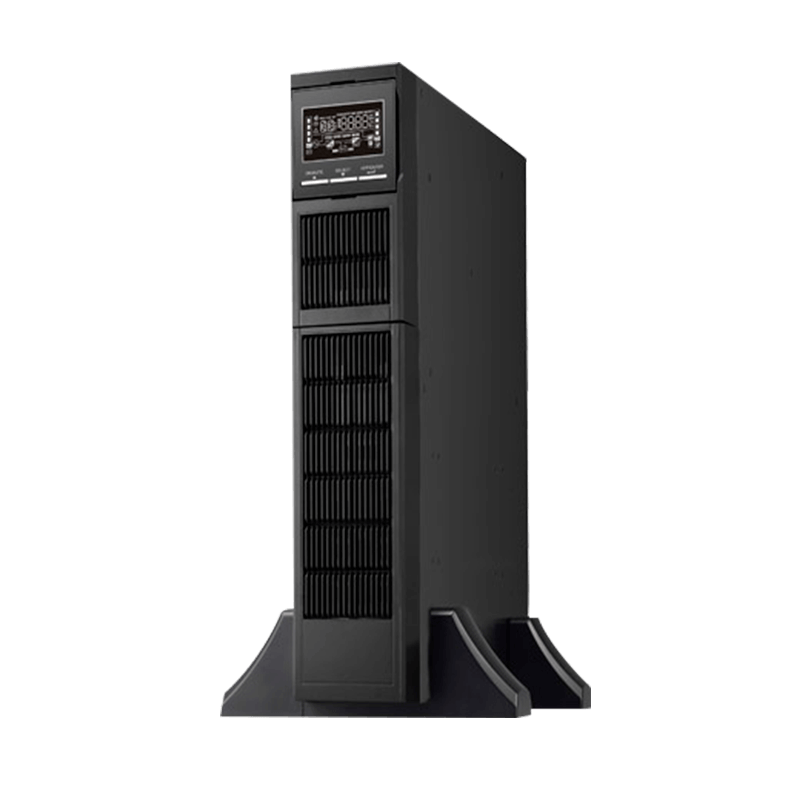

| RT model | Net weight/kg | 10.8 | 11.6 | 15.2 | 20.5 |
| RT model | Dimensions, D X W X H (mm) | 410 x 438 x 88 | 510 x 438 x 88 | 630 x 438 x 88 | |

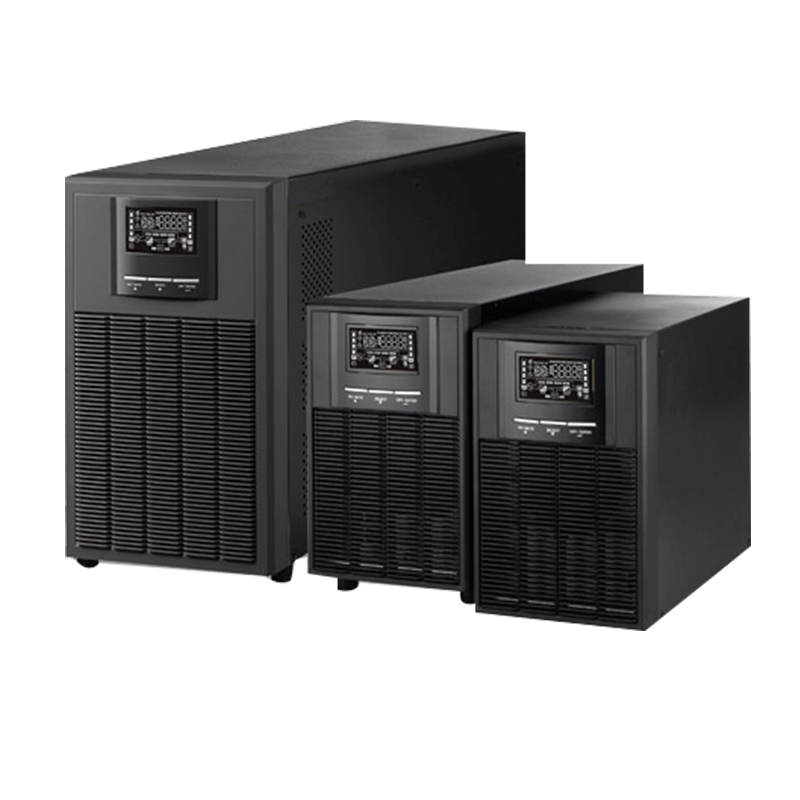

| Tower model | Net weight/kg | 9.8 | 10.7 | 15.7 | 21.8 |
| Tower model | Dimensions, D X W X H (mm) | 397 x 158 x 220 | 480 x 158 x 220 | 590 x 190 x 318 | |
| MANAGE | |||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC | ||||
| STANDARD | |||||
| Safety verification | CE (EMC: EN62040-2 C2) for HV models, FCC (Class A) for LV models, Battery Pack comply to UL1973 | ||||
