产品概述：Under the environment of poor power quality in my country, Aikesai Energy Co., Ltd. actively responded to the target policies for power energy conservation and ···

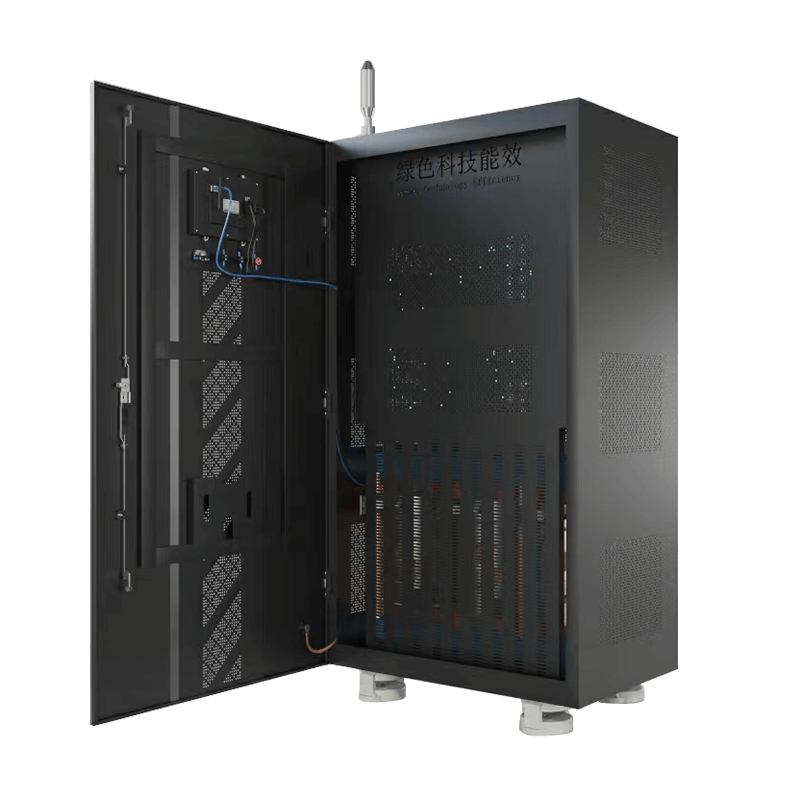

Under the environment of poor power quality in my country, Aikesai Energy Co., Ltd. actively responded to the target policies for power energy conservation and emission reduction proposed in the national "13th Five-Year Plan" energy conservation and emission reduction comprehensive work plan, and developed on the basis of the original new patented technology. The power-saving protection device for safe power consumption of Aikesai Energy is produced. According to the power quality of different industries, the power-saving effect is as high as 7%-35%. The intelligent power-saving protection device for safe power consumption of Aikesai Energy is a power-saving and power-saving protection device for the overall safe power consumption of the power distribution system. It applies the principles of electromagnetic balance, electromagnetic induction and electromagnetic compensation. Energy and flexible compensation adjustment technology, customized production according to the customer's power quality. The intelligent power-saving protection device for safe power consumption is mainly used in industrial enterprises, building supermarkets and other types of enterprises. Under the condition of not changing the original production process, production technology equipment and power grid structure of the enterprise, it can be installed in the low-voltage cabinet of the distribution transformer. The installation of the power-saving protection device for safe power consumption of Axel Energy can improve and improve the power quality of the power distribution system. In practical applications, through big data cloud monitoring, intelligent analysis and optimization of control strategies, the function of switching bypass without flashing can be realized. To achieve the purpose of comprehensive intelligent power saving and reducing equipment maintenance costs. The intelligent power-saving protection device for safe electricity consumption has the functions of anti-harmonic, over- and under-voltage, phase loss, over-current, short circuit, reverse phase, zero sequence, temperature control protection, etc. (fault record and processing method). Realize the unattended function of intelligent automatic operation (remote equipment parameter monitoring, remote control).
power section | AKS/TSB-315kvA - - 8000kvA | |
enter | Input rated voltage range | 390V ∽ 430V 3φ4W+G |
frequency | 47HZ-63HZ | |
output | The output voltage | 380V 3φ4W+G |
output precision | ±3% | |
waveform distortion | No additional waveform distortion (static) | |
efficiency | ≥98% | |
Three-phase unbalance | Three-phase voltage automatic balance | |
Delay output | Output first (protect equipment from shock) | |
protect _ | overvoltage | When the output phase voltage exceeds 10% (245V), cut off the output or turn to bypass without interruption (can be set according to actual requirements) |
undervoltage | When the output phase voltage is lower than 10% (195V), cut off the output or turn to bypass without interruption (can be set according to actual requirements) | |
lack of phase | With /automatic cut off (can be set according to actual requirements) | |
overload | Electronic detection, overload cut-off output (can be set according to actual requirements) | |
overcurrent | Electronic detection and circuit breaker double protection | |
short circuit | Electronic detection and circuit breaker double protection | |
bypass | Uninterrupted and seamless switching | |
Delay output | When the power is sent to the mains or when the power is cut off, the output will be delayed for 5 seconds | |
instruction _ | Voltage | A, B, C, ΣABC three-phase with true RMS LCD liquid crystal display respectively |
current | A, B, C, ΣABC three-phase with true RMS LCD liquid crystal display respectively | |
working status | Bypass /Energy Saver State | |
abnormal | Overvoltage and undervoltage, phase loss, overcurrent, short circuit, reverse phase, zero sequence, temperature | |
Way of working | With bypass and energy saving two working modes | |
overload capacity | 3 times rated current for 10 seconds | |
HMI | Intelligent man-machine interface operation panel, easy to set and query various parameters | |
Working pressure | No breakdown within 1 minute at 2500V | |
Ambient temperature /humidity | -150C～450C ≤95%, no condensation | |
Harmonic suppression capability | > 50dB output waveform distortion <3% (including grid distortion) | |
Insulation resistance | ≥5MΩ | |
GPRS module (option): | Remote device parameter monitoring, remote control | |
